Product Description:
Type 1 SPDs (Surge Protection Devices) are a 25ka surge protector that meet the IEC standard and are IP20 rated. They are suitable for a voltage rating of 275V, 320V, 385V and 440V, and have a rapid response time of less than 100ns. This surge protection device is capable of operating in temperatures ranging from -40°C to 80°C. It is the ideal solution for protecting valuable equipment from power surges.
Features:
- Product Name: Type 1 Surge Protection Device
- Voltage Rating: 275V, 320V, 385V, 440V
- Frequency: 50/60Hz
- Standard: IEC Standard
- Response Time: ≤100ns
- Protection Class: IP20
- 25ka Surge Protector: Yes
Technical Parameters:
| Parameters | Value |
| Standard | IEC Standard |
| Protection Class | IP20 |
| Mounting Type | DIN Rail 35mm |
| Response Time | ≤100ns |
| Operating Temperature | -40°C-80°C |
| Frequency | 50/60Hz |
| Protection Level | Type 1 |
| Product Name | Type 1 Surge Protection Device |
| Humidity Rating | 95% |
| Number of Poles | 1P,1P+N ,2P,3P,3P+N, 4P Optional |
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
Applications:

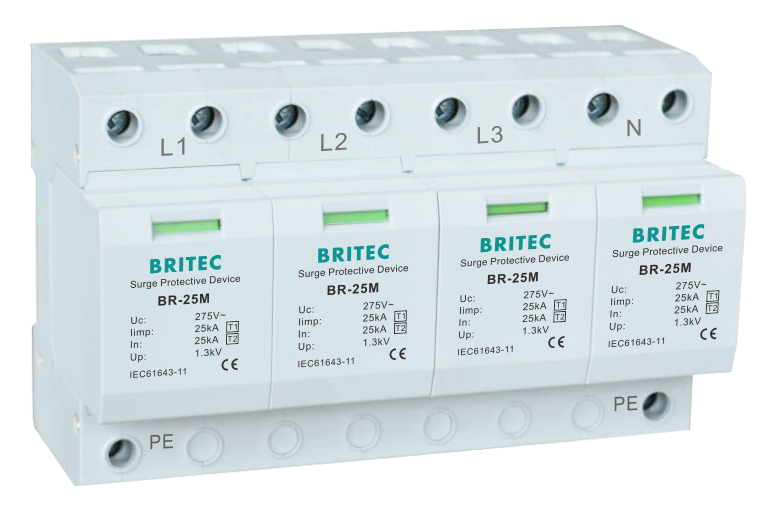

BRITEC BR-25M 4P Type 1 Surge Protection Device is a 25ka surge protector certified by TUV/CB/CE/ROHS/ISO9001, meeting IEC Standard, with a protection class of IP20 and an operating temperature of -40°C-80°C. With a minimum order quantity of 1PCS and a weight of 1kg, it is packaged in a carton and shipped within 15 days after receipt of the deposit. It has an ample supply ability of 1000000 per month and accepts payment terms of TT. This type 1 spd is highly reliable and efficient in providing protection against type 1 surge events.
This BRITEC BR-25M 4P Type 1 SPD is suitable for a variety of applications, such as industrial, commercial and residential sites, as it is able to provide protection against power surges, overvoltage, and other electrical hazards. It is also suitable for high-traffic areas, such as airports, railway stations, shopping malls, and other public places. In addition, it is ideal for power distribution networks and power metering systems, where it can provide an effective protection against power surges.
Customization:
Type 1 Surge Protection Device
| Brand Name | BRITEC |
| Model Number | BR-25M 4P |
| Place of Origin | China |
| Certification | TUV/CB/CE/ROHS/ISO9001 |
| Minimum Order Quantity | 1PCS |
| Packaging Details | Carton |
| Delivery Time | 15 days after receipt of deposit |
| Payment Terms | TT |
| Supply Ability | 1000000 per month |
| Product Name | Type 1 Surge Protection Device |
| Frequency | 50/60Hz |
| Response Time | ≤100ns |
| Protection Class | IP20 |
| Weight | 1kg |
This 25ka surge protector device is a Type 1 SPD which is certified by TUV/CB/CE/ROHS/ISO9001. The response time is ≤100ns and the protection class is IP20. It has a 50/60Hz frequency and weighs 1kg. We can supply up to 1000000 pieces per month and the minimum order quantity is 1PCS. The packaging details are carton and delivery time is 15 days after receipt of deposit. Payment term is TT.
Support and Services:
Type 1 Surge Protection Device Technical Support and Service
We provide comprehensive technical support and service for Type 1 Surge Protection Device. Our technical support staff is trained to quickly analyze and solve any technical issues you may encounter. We also provide maintenance and repair services to ensure your device is functioning optimally.
We strive to provide the best customer service for our customers. We offer 24/7 customer support through our website, email, and phone. We also have an in-house team of engineers and technicians who can provide on-site assistance if necessary.
If you need help troubleshooting, or if you have any questions about your device, please don’t hesitate to contact us. We’re here to help!
FAQ:
Q1: What is Brand Name of this Type 1 Surge Protection Device ?
A1: The Brand Name is BRITEC.
Q2: What is the Model Number of this Type 1 Surge Protection Device ?
A2: The Model Number is BR-25M 4P.
Q3: Where is the Place of Origin of this Type 1 Surge Protection Device ?
A3: The Place of Origin is China.
Q4: What Certifications does this Type 1 Surge Protection Device have?
A4: This Type 1 Surge Protection Device has TUV/CB/CE/ROHS/ISO9001 Certifications.
Q5: What is the Minimum Order Quantity of this Type 1 Surge Protection Device ?
A5: The Minimum Order Quantity is 1PCS.
